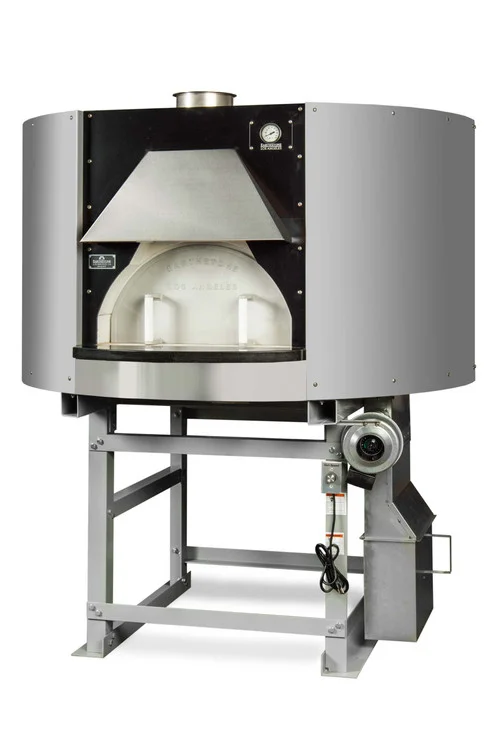

Earthstone 130-PACB – Pre-Assembled Coal Burning Commercial Pizza Ovens with Pierre de Boulanger

Description

Earthstone 130-PACB
Coal Burning Oven, mechanical thermometer, cast aluminum door, includes coal grate, combustion fan, ash disposal chute, removable storage bin, stainless steel flue adapter, metal pizza peel, granite shelf, hood cover, and shelf apron, (9-10) 8″, (6-7) 12″, or (3-4) 16″ pizza capacity, gray finish, ETL-Sanitation, cETLus

The Model 130-PACB tiled pizza oven has a 52 interior cooking diameter and a 27W x 14½H oven entrance. The body parts are a cast 4 to 6 inch thick dense, high temperature refractory material with an 80% alumina content and additional special additives which stop deterioration from acids emitted by wood and coal combustion. The Model 130-PACB tiled pizza oven has a 1-inch side clearance to combustible materials. The oven incorporates an innovative coal grate, air induction and removable ash disposal bin which is designed to enhance combustion.

The hearth floor tiles, Pierre de Boulanger (Bakers Tiles), which are used in industrial bread baking ovens all across Europe, are refractory material pressed at 8,500 p.s.i. and kiln fired at 2,800 degrees which ceramitizes the material to create a hard and extremely durable tile. Both the body pieces and floor tiles are cast and assembled individually which allows for continuous joints throughout the entire oven. This greatly reduces the possibility of stress cracks due to normal heat expansion and contraction. In addition this allows the ovens to be serviceable which extends their usable life.

Pre-Assembled Coal Burning Oven – 130-PACB

Height: 80
Exterior Diameter: 70
Interior Diameter: 52
Oven Entrance Opening: 27W x 14½H
Clearance to Combustible Sidewalls: 1

Pizza Capacities:

8 Pizzas: 9-10

12 Pizzas: 6-7

16 Pizzas: 3-4

Gas Requirements:

N/A

Electrical Requirements:

120 VAC/ 3 AMP

Ovens come standard with:

Factory finished gray paint

Mechanical Thermometer (0-1000F)

Coal Grate and combustion fan

Ash disposal chute and removable storage bin

Cast Aluminum door

Granite shelf

Hood cover (s/s or copper)

Shelf apron (s/s or copper)

S/S Flue adapter

Metal pizza peel

Manufacturer Warranty:

5 year limited warranty on refractory

1 year limited warranty on gas / electrical

Certifications:

ETL-Sanitation

cETLus

Venting applications for commercial use: ETL/U.L. Listed grease duct/building heating appliance chimney or ETL/U.L. Listed Type I exhaust hood.
