Description
[Expo Used, Open Box]

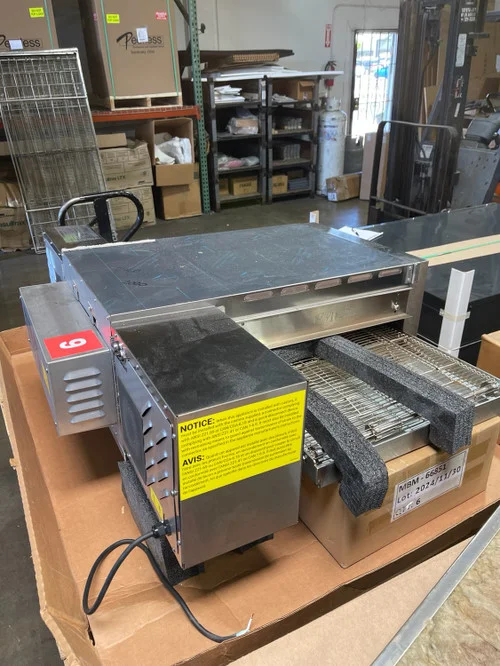

Middleby Marshall X20 Gas Conveyor Oven 20 Countertop Commercial Pizza Conveyor Oven with Impingement Airflow, High-Speed Cooking, Stackable Design & OneTouch Controls.
The Middleby Marshall X20 Gas Conveyor Oven is a high-performance, space-saving countertop solution designed for commercial kitchens requiring speed, consistency, and efficiency. Featuring a 20-inch cooking chamber and advanced impingement airflow technology, this oven delivers rapid, uniform cooking results while maintaining a compact footprint. Its innovative gas heating system, variable-speed conveyor and blower motors, and independently controlled upper and lower air impingement ensure precision cooking for a wide range of menu items. Built for flexibility, the X20 supports stackable configurations, intuitive OneTouch controls, and IoT capability, making it ideal for high-volume operations seeking reliability and modern performance.
Key Features
20 cooking chamber with 20 wide conveyor belt
High-speed recirculating impingement airflow system for faster cooking
Patent-pending compact gas heat system
Stackable design up to three ovens (with stacking kits)
Variable-speed conveyor and blower motors for cooking precision
Independently controlled upper and lower air impingement
Easy-to-clean mono-finger airflow design
OneTouch control system for simple operation
Built-in self-diagnostics for monitoring oven performance
Reversible conveyor direction (left-to-right or right-to-left via software)
IoT capability available for advanced monitoring
Includes two 6 conveyor extensions
Plug-and-cord setup (6 ft. nominal) for easy installation
Two-year parts and labor warranty
General Performance
Bake Temperature Range: Up to 600°F (316°C)
Time Range: 30 seconds to 14 minutes
Dimensions (Single Unit)
Heating Zone Length: 20 (508 mm)
Baking Area: 2.8 ft² (0.26 m²)
Belt Width: 20 (508 mm)
Conveyor Width: 20.75 (527 mm)
Belt Length: 48 (1219 mm)
Overall Length: 48.47 (1231 mm)
Depth: 38.09 (968 mm)
Height: 17 (432 mm)
Weight: 195 lbs (88.5 kg)
Installation Clearance
Side Clearance: 2 (50.8 mm)
Rear Clearance: 0
Gas Specifications
Natural Gas:
Supply Pressure: 68 W.C. (14.919.9 mbar)
Manifold Pressure: 3.5 W.C. (8.7 mbar)
Heat Input: 40,000 BTU (11.7 kW)
Propane Gas:
Supply Pressure: 1214 W.C. (30.034.9 mbar)
Manifold Pressure: 10 W.C. (24.9 mbar)
Heat Input: 40,000 BTU (11.7 kW)
Electrical Requirements
Voltage: 208/240V, Single Phase, 50/60 Hz
Circuit Requirement: 20A dedicated circuit
Plug Type: NEMA L6-20P (6 ft cord included)
